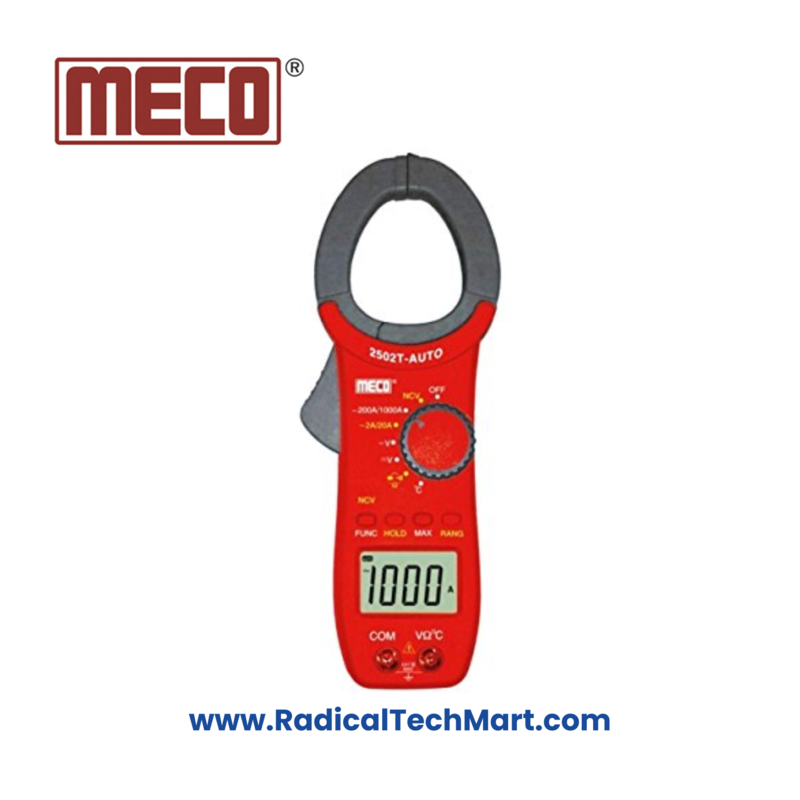

MECO 2502T Auto Digital AC Clamp Meter

Features & Specifications:

• Inclusions:
  • One pair of test leads
  • Instruction manual
  • Carrying case
  • Battery installed
  • K-type thermocouple (up to 260°C)
• Voltage and Current Ranges:
  • Max. DC Voltage Range: 601-1000 V
  • Max. AC Voltage Range: 601-750 V
  • Max. AC Current Range: 601-1000 A
  • DC Voltage Range: 200 mV - 1000 V
  • AC Current Range: 0-1000 A
  • AC Voltage Range: 0-750 V
• Accuracy:
  • DC Voltage Accuracy: 0.8% + 3 digits
  • AC Voltage Accuracy: 1.2% + 3 digits
  • AC Current Accuracy: 2.0% + 5 digits
  • Resistance Accuracy: 1.2% + 3 digits
  • Temperature Accuracy: 3.0% + 5 digits (Temperature range: -20°C to 750°C)
• Display:
  • 3½ digit liquid crystal display (LCD) with a maximum reading of 2000
  • Display counts: 2000
• Polarity & Overrange:
  • Automatic polarity (positive implied, negative polarity indicated)
  • Overrange displayed as (OL) or (-OL)
• Other Features:
  • Zero: Automatic
  • Diode Test Function
  • Audible Continuity Check
  • Low Battery Indication
  • Select Button
  • Data Hold Button
• Physical Specifications:
  • Jaw Opening Size: 52 mm
  • Weight: 309 g
  • Dimensions: 245 x 95 x 35 mm
• Power:
  • Battery: 2 AA batteries (1.5 V)
  • Battery Life: 200 hours typical
• Operating Environment:
  • Temperature: 0°C to 50°C
  • Relative Humidity: 80% RH
• Storage Environment:
  • Temperature: -20°C to 60°C
• Warranty: As per Meco's warranty policy
